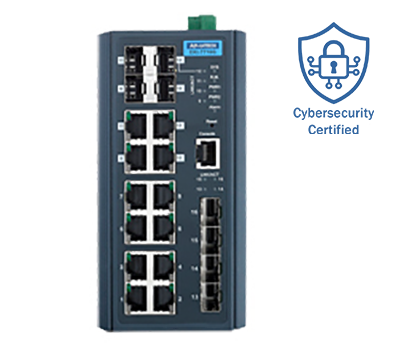

Advantech EKI-7716G-4F4CI
8GE+4SFP+4G Combo port
Managed Redundant Industrial Switch
Proprietà
Descrizione
Further informazioni
Prodotti similari
Stampare questa pagina
Richiedere un prezzo
Mostrare le miei note
PDF
Proprietà
Descrizione
Further informazioni
PDF
- 12 ~ 48 VDC power input and 1 relay output
- -40 ~ 75°C wide-range operating temperature (EKI-7716G-4F4CI)
- EN50121-4 approval for railway trackside deployment
- NEMA TS2 for traffic control
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP and MSTP (802.1w/1D/1s)
- SFP socket for easy and flexible fiber expansion
EKI-7716G-4F4C/4F4CI supports 8 Gigabit Ethernet, 4 Gigabit SFP (mini-GBIC), and 4
Gigabit combo ports. It provides abundant ports to connect many devices. EKI-7716G-4F4C/4F4CI
is embedded with Advantech IXM function for fast deployment that can dramatically save engineering
time and cost. EKI-7716G series also supports NMS to help IT managers with networking maintenance and
failure prevention. Finally, the EKI-7716G series is equipped with X-Ring Pro redundancy for ultra high-speed
recovery times of less than 20 ms. The switch also features -40 to 75 °C wide temperature operation and NEMA
TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7716G-4F4C/4F4CI also passes
the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
Gigabit combo ports. It provides abundant ports to connect many devices. EKI-7716G-4F4C/4F4CI
is embedded with Advantech IXM function for fast deployment that can dramatically save engineering
time and cost. EKI-7716G series also supports NMS to help IT managers with networking maintenance and
failure prevention. Finally, the EKI-7716G series is equipped with X-Ring Pro redundancy for ultra high-speed
recovery times of less than 20 ms. The switch also features -40 to 75 °C wide temperature operation and NEMA
TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7716G-4F4C/4F4CI also passes
the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
Specifications
Communications
Interface
Network Management
Communications
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.3ab, 802.3z, 802.1D, 802.1w, 802.1s, 802.1P, 802.1Q, 802.1X |
| LAN | 10/100/1000BASE-TX, optional 100BASE-FX, 1000BASE-SX/LX/LHX/XD/ZX/EZX |
| Transmission Distance | Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45 cable suggested for both Fast Ethernet/Gigabit port) SFP: Up to 110 km (depends on SFP) |
| Transmission Speed | Gigabit Ethernet: 10/100/1000 Mbps Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation Gigabit Fiber: Up to 1000 Mbps |
Interface
| Connectors | 8 x RJ45 (Gigabit Ethernet) 4 x SFP (mini-GBIC) 4 x RJ45/SFP (mini-GBIC) combo ports 6-pin screw terminal block connector (4-pin for Power, 2-pin for Relay) |
| LED Indicators | PWR1, PWR2, SYS, Alarm and R.M. 10/100/1000T (X): Link/Activity, Gigabit Copper: Link/Activity, Speed (1000 Mbps) SFP: Link/Activity |
| Console | RS-232 (RJ45) |
Network Management
| Configuration | Web browser, Telnet, Serial console, TFTP, SNMPv1/ v2c/v3, Port Speed/Duplex Configuration, IPv6 |
| VLAN | IEEE 802.1Q, GVRP, Port-based VLAN |
| Redundancy | Advantech X-Ring, 802.1w/1D/1s RSTP/STP/MSTP |
| Security | IP Security, SSH, SSL, SNMPV3, HTTPS, IP Source Guard, DHCP Snooping, ARP Spoofing Prevention, 802.1X, TACACS+, Access Control List |
| Diagnostics | Port Mirroring, Real-Time Traffic Statistic, MAC Address Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON |
| Traffic Control | IGMP Snooping/Query for Multicast Group Management, Port Trunking, Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/ DSCP Priority Queuing, IEEE 802.3x Flow Control |
